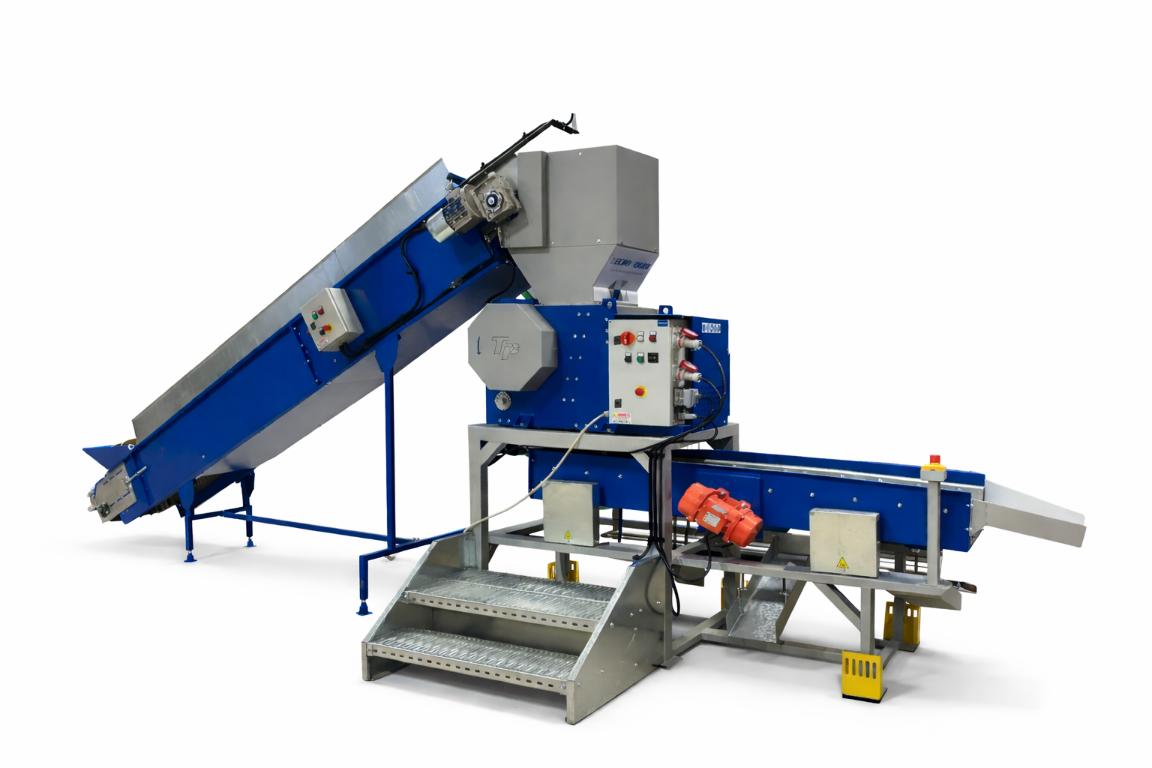

Crusher with loading conveyor
500-200 PLUS X
-
Overall dimensions: 1180 x 980 x 2150h mm
-
Total weight: 1060 Kg
-
Electric power: 5.5 kW – 380/400V – 50/60Hz
-
Productivity: 4 – 5 m³/hr
-
Loading hopper: 500 x 500 mm
-
Crusher Opening: 500 x 190 mm
1st binary: 500 x 130 mm NEW
2nd binary: 500 x 190 mm NEW
-
Mobil Plate Level: 9 levels [for each track]
-
Size Output:
1st binary → 0 – 40 mm
2nd binary → 0 – 60/80 mm
-
Size Output Separated (mm): additional accessory

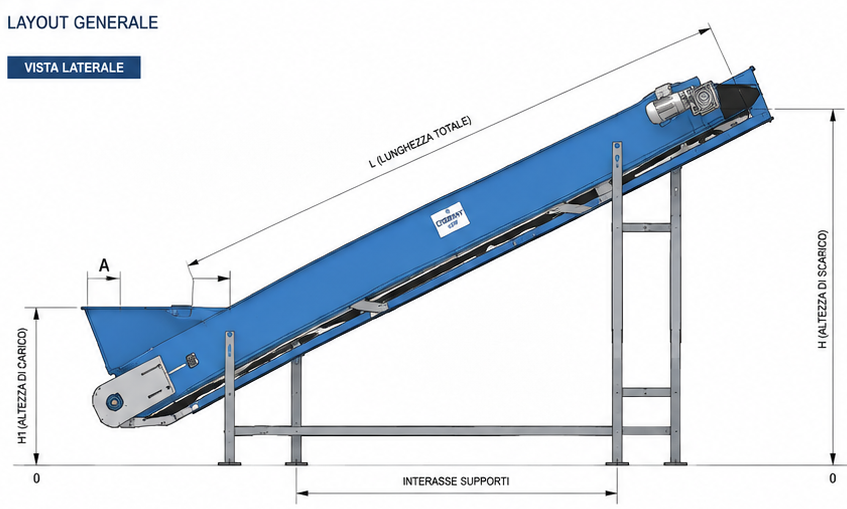

PLUS conveyor belts
- Overall dimensions: 5000 × 550 mm (height adjustable)
- Loading hopper: 650 mm
- Belt width: 350 mm
- Belt thickness: 15 mm
- Electric power: 1.50 kW – 380/400 V – 50/60 Hz
- Weight: 445 kg
Benefits
The model 500-200 PLUS45-X is an automatic system composed of the Crusher and the Loading Conveyor Belt equipped with a sensor. The system allows for fully automated process management without any physical effort during the loading phase, where the quantity of “input” material fed is regulated by a detection sensor in proportion to the crushed “output” material being discharged. The conveyor belt features a reinforced structure made of press-bent sheet metal, painted with anti-rust coating and in a color matching the crushing unit. The rubber belt, reinforced with transverse plates (inserted between the rollers), is designed to ensure the proper transfer of stone material across its full range.
Assemble your machine
Standard crusher
500-200
- Dimensione d’ingombro : 5500 x 2000 x 2400h mm
- Peso totale: 1650 Kg
- Potenza Elettrica: 9,5kW – 380/400V – 50/60Hz
- Produttività: 4 – 5 m³/ hr
- Tramoggia di carico: 500 x 500 mm
- Camera di frantumazione: 500 x 190 mm
1° binario: 500 x 130 mm
2° binario: 500 x 190 mm - Regolazione mascella: 9 livelli [per ciascun binario]
- Output d’uscita:
1° binario → 0 – 30/40 mm
2° binario → 0 – 60/80 mm - Vagliatura (mm) : 4 Separazioni (personalizzabili)
Nastri trasportatori
- Dimensione d’ingombro : 3000/5000 x 550 mm (h: regolabile)
- Tramoggia di carico: 650 mm
- Larghezza tappeto: 350 mm
- Spessore tappeto: 15 mm
- Potenza Elettrica: 0,75/1,50kW – 380/400V – 50/60Hz
Crusher and 4 output separator
500-200 M4
Dimensione d’ingombro: 1100 x 2750 x 2100h mm
Peso totale: 1480 Kg
Potenza Elettrica: 7,5kW – 380/400V – 50/60Hz
Produttività: 4 – 5 m³/ hr
Tramoggia di carico: 500 x 500 mm
Camera di frantumazione: 500 x 190 mm
1° binario: 500 x 130 mmNEW
2° binario: 500 x 190 mmNEW
Regolazione mascella: 9 livelli [per ciascun binario]
Output d’uscita:
1° binario → 0 – 30/40 mm
2° binario → 0 – 60/80 mm
Vagliatura (mm) : 4 Separazioni (personalizzabili)
Fully automatic crusher
500-200M4 2-PLUSX
- Dimensione d’ingombro : 5500 x 2000 x 2400h mm
- Peso totale: 1650 Kg
- Potenza Elettrica: 9,5kW – 380/400V – 50/60Hz
- Produttività: 4 – 5 m³/ hr
- Tramoggia di carico: 500 x 500 mm
- Camera di frantumazione: 500 x 190 mm
1° binario: 500 x 130 mm
2° binario: 500 x 190 mm - Regolazione mascella: 9 livelli [per ciascun binario]
- Output d’uscita:
1° binario → 0 – 30/40 mm
2° binario → 0 – 60/80 mm - Vagliatura (mm) : 4 Separazioni (personalizzabili)
Nastri trasportatori
- Dimensione d’ingombro : 3000/5000 x 550 mm (h: regolabile)
- Tramoggia di carico: 650 mm
- Larghezza tappeto: 350 mm
- Spessore tappeto: 15 mm
- Potenza Elettrica: 0,75/1,50kW – 380/400V – 50/60Hz
Accessories
Separation System M3
Permits the selection of the output in three customized parts
Tipping container C1
Useful for collecting materials, with superior grip
Tipping container C2
Useful for collecting materials,
with lower fork grips
Detection sensor X
Useful for conveyor belts’ automatic management
Conveyor belt PLUS
Ideal to transfer materials both at the inlet (crusher) and at the outlet (container).
Lateral Staircase K
Facilitates manual insertion of the material
